Product name：WS-T21MPRO double-channel for core-temperature(external)
Product type：WS-T21MPRO
Product brand：WASON
Temperature range：-40℃～100℃
Product introduction：Wason PRO series temperature and humidity recorder is a single model precision instrument for automatic data storage. The instrument adopts low power consumption design; Double cavity structure, high waterproof grade; Wide detection range.
Detail

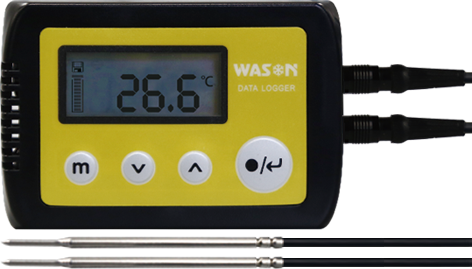

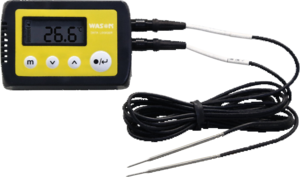

PRO Series External Dual CORE-temperature Recorder
WS-T21MPRO
Product Overview：
Wason PRO series temperature and humidity recorder is a single model of precision instrument forautomatic data storage. The instrument adopts low power consumption design, long standby time; Double cavity structure, high waterproof grade;adaptableto different sensors, wide detection range. C-mi software can be used to achieve parameter setting, data download, data analysis, data export and other functions, and can directly copy data in CSV format from the logger without using C-mi software. Widely used in food and medicine, cold chain logistics,chemicals, electronics, archives, agricultural research and other fields.
Product Characteristics：
No special software is required to download data;
Different probe applicable;
Multi-process mode;
℃/℉ switchable;
Host with IP65 waterproof grade, suitable for harsh environment;
Low power design, battery life: 1 ~ 2 years;
ABS engineering plastic shell, with double chamber;
LCD display:temperature, time, battery capacity, alarm, etc.
Product Parameter：
Sensor type
Core-temperature (external)
Number of sensors
Dual channel
Sensor length
2m
Temperature range
-40℃～100℃
Temperature accuracy
（-20~70）℃：±（0.3~0.5）℃；Other：±1℃
Display resolution
0.1℃/0.1℉
Memory resolution
0.1℃/0.1℉
Recording capacity
64800 groups
Record interval
1min～60min
Parameter configuration
Special software configuration, manual key configuration
Out-of-limit alarm
LCD prompt, buzzer alarm
Clock
Real-time clock display
Starting mode
Manual start, the software starts periodically
Stop mode
Manual stop, full stop
Communication interface
Mini USB
Power supply
High energy lithium battery
Battery life
1～2 years (depending on frequency of use)
Host operating environment
-20℃～70℃
Overall dimension
93mm×62mm×22mm
Weight
108g
Calibrate
Standard product with factory calibration certificate, optional accessory with CNAS calibration certificate
Shell material
ABS(shock-resistant)
Keep under warranty
12 months
Class of protection
IP65
Product certification
CE certification
Product Accessories:
Accessories
Name
External
core-temperature temperature sensor
USB Data cable
User manual
Type
P019
P108
/
Accessories
Name
Calibration certificate
Software get business card
Lithium battery
Type
/
/
P701
Accessories
Name
CNAS Calibration certificate
External
core-temperature temperature sensor
External
core-temperature temperature sensor
Type
/
P010Y50
P020Y50
Note information
Optional
MPRO（-40℃~150℃）
MPRO（-40℃~150℃）
Accessories
Name
External
core-temperature temperature sensor
Type
P010-L100
Note information
MPRO（-40℃~150℃）
Usage Method：
Method 1：
None-driving usage (no special software required, more convenient to use, the third generation recorder unique use mode.)
①According to the instructions, parameters are set by four buttons on the recorder.
②After the setting is completed, place it in the environment to be detected, and open the record.
③Stop recording, connect it to the computer with a USB cable to download the data.
④Copy data files in CSV format directly from the recorder, which can be opened by text processing software such as EXCEL or TXT.
Method 2：
When you have more requirements for data analysis, please use the dedicated software to download the data, through the dedicated software you can view data reports, data curves, data statistics, record remarks and other information, but also output PDF data files.
①Copy the special software to your computer, green software, no need to install, open to use.
②Connect the recorder to the computer and set parameters when the recording is stopped.
③Remove the recorder from the computer, and place it in the environment that needs to be detected, and turn it on.
④Stop recording, connect the recorder to the computer, check historical data, historical curves, data statistics, etc., and print data, output PDF and other format files.
Data Reports And Data Curves
Data Reports And Statistics
Output PDF Curve
Output PDF Report
Product Application：
It’s widely used in different industries, such as food, pharmacy, electronics, chemicals,transportation, agricultural research, textiles, meteorological & environmental protection, HVAC refrigeration, archives management, and biochemical laboratory, etc.
